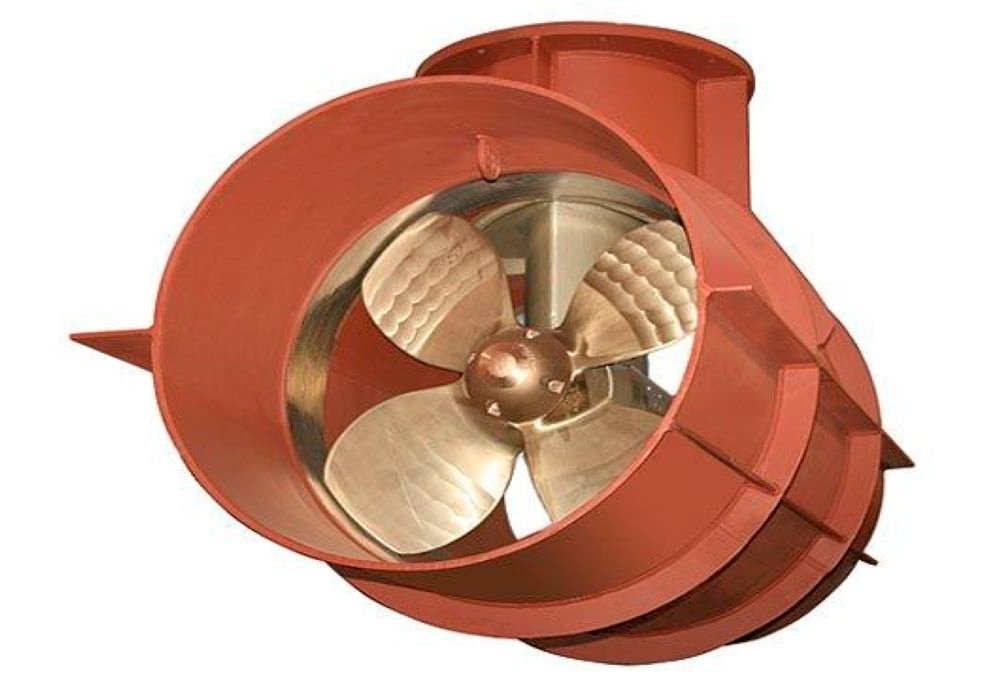

Marine Bow Thruster

A marine bow thruster is a device for producing directed hydrodynamic thrust mounted on a marine vehicle, primarily for maneuvering or propulsion. There are a variety of different types of marine thrusters and each of them plays a role in the maritime industry. Marine thrusters come in many different shapes and sizes, for example screw propellers, Voith-Schneider propellers, waterjets, ducted propellers, tunnel bow thrusters, and stern thrusters, azimuth thrusters, rim-driven thrusters, ROV and submersible drive units.

A marine bow thruster consists of a propeller or impeller which may be encased in some kind of tunnel or ducting that directs the flow of water to produce a resultant force intended to obtain movement in the desired direction or resist forces which would cause unwanted movement. The two subcategories of marine thrusters are for propulsion and maneuvering, the maneuvering thruster typically in the form of bow or stern thrusters and propulsion thrusters ranging from Azimuth thrusters to Rim Drive thrusters.

Reconditioned Marine Bow Thruster

Propulsion thrusters are those thrusters which provide longitudinal motion for vessels as an alternative to traditional propellers. There are a variety of types of propulsion thrusters but the most common form is the azimuth thruster, that can rotate 360 degrees on a vertical axis to optionally produce thrust for maneuvering. (Lindborg, 1997). The amount of thrust produced is controllable.

There are variants of azimuth thrusters such as CRP thrusters which have two contra-rotating Azimuth thrusters or Swing-Up Azimuth thrusters that can be retracted when not in use to reduce drag on the vessel (Wartsila Encyclopedia). Other propulsion thrusters like outboard thrusters which can be easily put in and out of service, rim drive thrusters that are driven via the external ring with the blades mounted on the inner face of the ring with their tips towards the center, or tilted thrusters pointed away from the hull to minimize interaction with the ship and increase thruster efficiency.

The choice between using thrusters or traditional propellers to propel marine vessels is a compromise between versatility and efficiency. Propellers are designed to work in-line with a propulsion plant and produce one-directional thrust while thrusters are more customizable and have a more versatile application. They have this versatility at the cost of complexity and lower efficiency – they are not as robust as propellers and typically have applications on smaller vessels that don’t require as much power.
